A Plant Manager’s Guide to Machine Guarding Standards for Preventing Amputations in Quebec

The jolt of a near-miss accident on the production line is a feeling no plant manager ever forgets. It’s a stark reminder that the gap between a normal shift and a life-altering tragedy can be a matter of seconds and centimetres. In the aftermath, the immediate reaction is to consult checklists and review compliance with CNESST regulations. While essential, this reactive approach often misses the bigger picture. Standard advice revolves around installing guards and performing Lockout/Tagout (LOTO), but it rarely delves into the engineering decisions that make these systems truly effective or the human factors that cause them to be defeated.

But what if the true path to preventing amputations wasn’t just about ticking boxes, but about adopting a holistic engineering mindset? This perspective reframes machine safety not as a set of disconnected rules, but as an integrated system. It considers the lifecycle of the machine, the physics of its operation, and the psychology of its operator. It means understanding why a fixed guard is right for one application and an interlock is essential for another, based on a rigorous analysis of tasks and downtime costs. It involves seeing LOTO not as a separate procedure, but as the final, critical step in a chain that begins with robust physical guarding.

This guide is designed for the Montreal-based plant manager who needs to move beyond reaction and build a proactive, defensible safety culture. We will dissect the critical engineering choices you face, from retrofitting 1990s equipment to meet current CSA standards to calculating the precise safety distance for light curtains. By focusing on the ‘why’ behind the regulations, you can build a system that is not only compliant but fundamentally safer for your team.

This article provides a detailed, engineering-focused breakdown of the key areas of machine safety you need to master. The following summary outlines the path to transforming your factory’s safety from a list of requirements into an integrated, effective system.

Fixed Guard or Interlock: Which Do You Need for Frequent Maintenance Access?

The choice between a fixed guard and an interlocked guard is a foundational engineering decision, not a matter of preference. A fixed guard is a permanent barrier, secured with fasteners requiring a tool for removal. It is the default, most robust solution when access to a hazardous area is not required during normal operation. However, for tasks like daily cleaning, setup, or clearing jams, requiring tools to remove a fixed guard introduces significant downtime and incentivizes unsafe workarounds. This is where an interlocked guard becomes necessary. This type of guard uses a sensor or switch that is integrated with the machine’s control system. Opening the guard automatically sends a stop command to the hazardous motion.

For a plant manager, the decision must be based on a task-based risk assessment. The key question is: “How often does an operator or maintenance technician need to access this area?” If the answer is “rarely” (e.g., for semi-annual motor replacement), a fixed guard is appropriate. If the answer is “frequently” (daily or per-shift), an interlock is mandated by both good practice and CSA Z432 standards. As a case study from a Quebec food processing facility shows, Type 4 interlocks are chosen for daily cleaning tasks, while fixed guards protect semi-annual maintenance points on rotating equipment.

While interlock systems have a higher initial cost, their impact on production uptime for frequent-access tasks is significant. The total cost of ownership (TCO) must be the primary financial metric, not just the upfront purchase price.

This table outlines the cost-benefit analysis a manager must consider. As shown in a comparative analysis of guarding systems, the long-term costs of lost production from using fixed guards in high-access scenarios far outweigh the initial investment in an interlock system.

Ultimately, selecting the correct guarding type is the first step in a holistic safety system that prevents both injury and unnecessary downtime.

How to Integrate Machine Guarding with Your Lockout/Tagout Procedure?

Machine guarding and Lockout/Tagout (LOTO) are not two separate safety programs; they are two interconnected layers of a single, robust system for controlling hazardous energy. Guards are the first line of defense, preventing access during operation. LOTO is the definitive procedure for ensuring zero-energy state before any part of the body enters a danger zone for non-routine tasks like maintenance, repair, or major cleaning. A critical error is assuming an interlocked guard is a substitute for LOTO. It is not. An interlock is designed for operational access, while LOTO is for intervention.

The integration process must be formalized. According to CSA Z460, “Control of Hazardous Energy,” which is the recognized best practice in Quebec, the LOTO procedure must be applied before any work that involves removing or bypassing a guard. The machine’s specific LOTO procedure should explicitly state: “Verify that all guards are in place and functional before removing lock and re-energizing.” This creates a closed-loop verification process. This legal mandate is broadly applied, as noted by safety experts.

OHS regulations across Canada mandate lockout procedures (e.g., Ontario’s industrial regulations and similar rules in other provinces require that all sources of energy be isolated and locked out before maintenance)

– Workplace Safety and Prevention Services, Workplace Injuries in Canada Report 2024

For your Montreal facility, this integration requires clear documentation and training. Every worker authorized to perform LOTO must understand that their procedure is not complete until the guards are confirmed to be reinstalled and functional. For machines with programmable safety controllers, the integration logic (e.g., ensuring a machine cannot be restarted if a guard and a LOTO are removed out of sequence) must be validated by a Professional Engineer (P.Eng.) as per Quebec’s RSST (Règlement sur la santé et la sécurité du travail) requirements.

This systematic integration ensures there are no gaps between the operational safety provided by guards and the maintenance safety guaranteed by LOTO.

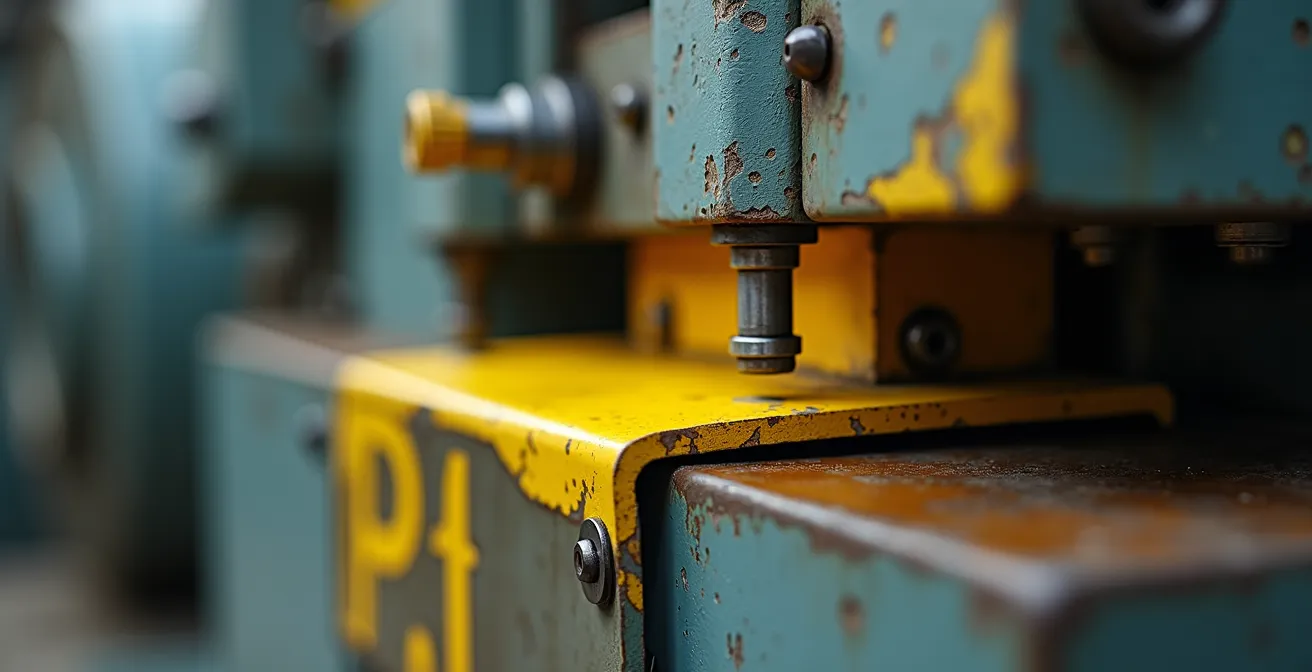

How to Bring 1990s Machinery Up to Current CSA Safety Standards?

Much of Quebec’s industrial backbone is built on machinery from the 1980s and 90s. While reliable, this legacy equipment was often manufactured before modern, harmonized safety standards like CSA Z432 were established. As a plant manager, you cannot use a machine’s age as an excuse for non-compliance; under Quebec law, all equipment, regardless of its vintage, must be made safe. The process of retrofitting is not an informal task but a formal engineering project that must be documented to withstand CNESST scrutiny.

The modernization process must follow a structured, risk-based approach. It begins with a comprehensive risk assessment performed by a competent person, ideally with the oversight of a Quebec-based engineering firm specializing in machine safety. This assessment identifies all hazardous energy sources and access points, creating a “gap analysis” between the machine’s current state and today’s requirements. The solutions may involve adding new fixed and interlocked guards, upgrading control systems to be safety-rated, or installing modern presence-sensing devices like light curtains.

Crucially, any significant modification to a machine’s safety system in Quebec requires a P.Eng. to review and seal the compliance report. This provides a professional attestation that the retrofitted machine now meets the necessary level of safety required by the RSST. This isn’t just a best practice; it is your legal and ethical due diligence.

By treating modernization as a formal engineering project, you transform a potential liability into a documented, compliant, and safe asset.

The “Cheater Key” Trick Operators Use to Bypass Guards and How to Stop It

One of the most frustrating and dangerous realities in manufacturing is the intentional defeat of safety devices. The “cheater key” is a classic example—an operator inserts a spare actuator, a taped-up sensor, or a magnet to trick an interlock switch into thinking a guard is closed when it’s wide open. This is done to speed up setup, clear jams without stopping the line, or otherwise avoid what is perceived as an inconvenient safety measure. This bypasses the entire safety system and is a primary contributor to the over 2,500 machine-related injuries annually in Canada. The financial fallout is also immense; the Workplace Safety and Insurance Board of Ontario alone recorded over $44 million in costs in one year for claims from workers caught in equipment.

From an engineering perspective, defeating a cheater key is not about blaming the operator; it’s about addressing the root cause through human-factor engineering. Why is the operator bypassing the guard? Is the guard poorly designed? Does it make the task ergonomically difficult? Does it slow down production unnecessarily? The solution lies in both technology and culture.

Technologically, the answer is to use higher-security, tamper-resistant interlocks. ISO 14119 defines four types of interlocking devices based on their resistance to being defeated. A simple, uncoded magnetic switch (Type 1) is easily bypassed. A Type 4 coded non-contact switch requires a uniquely paired sensor and actuator, making it nearly impossible to defeat with a spare part. Culturally, the solution involves the operators themselves. Involving them in the selection and design of guards (a practice known as participative ergonomics) ensures the final solution is practical for their real-world tasks. When the guard works with them, not against them, the incentive to defeat it disappears.

To combat guard bypassing, a multi-faceted approach is required:

• Address the root causes, which are often operator perceptions of inconvenience or pressure for increased productivity.
• Install high-security, Type 4 coded non-contact switches as defined by ISO 14119 that cannot be easily defeated with simple tools or spare parts.
• Ensure guards are properly adjusted for workers with different body sizes (e.g., hand sizes, arm lengths) across consecutive shifts.
• Implement participative ergonomics by involving operators directly in the selection and design process for new or modified guards.
• Examine the machine’s control system as a method of prevention, implementing features that detect anomalies, rather than focusing only on physical guard placement.

A safety system that is impossible to use will be defeated. A system designed with the user in mind will be used.

When to Recalibrate Light Curtains: The Stop-Time Test Explained?

Light curtains, or Active Opto-electronic Protective Devices (AOPDs), are a sophisticated form of guarding that creates an invisible sensing field. When a hand or object breaks any beam, the curtain sends an immediate stop signal to the machine’s hazardous motion. However, their effectiveness is entirely dependent on one critical factor: the machine must come to a complete stop *before* the person can reach the hazard. This is the core principle of the stop-time test, a fundamental aspect of the “physics of safety.”

The test measures the total time from the moment a light curtain beam is broken to the moment all dangerous motion has ceased (T). This time is then used in a formula to calculate the minimum safe mounting distance (D) for the light curtain. The formula, as defined by standards like CSA Z432, is: D = K × T. Here, K is a constant representing hand movement speed. The industry standard hand-speed constant is 1.6 m/sec (63 in./sec). If the curtain is mounted closer than this calculated distance, an operator can reach the hazard before the machine stops, rendering the safety device useless.

A stop-time test and distance calculation are not one-time events. They must be performed at installation and, crucially, must be repeated after any maintenance or modification that could affect the machine’s stopping time. This includes work on the clutch, brake, valves, or changes in the machine’s control system. An older brake may perform differently than a new one, increasing the stop time and requiring the light curtain to be moved further away. All tests must be documented for CNESST inspection.

A rigorous maintenance and recalibration schedule is mandatory:

• Daily: The operator should perform a simple visual inspection and a function test (e.g., using a test rod to check that breaking the beam stops the machine).
• Monthly: A more thorough functional test of all safety features should be conducted by trained personnel.
• Annually or Post-Maintenance: A full recalibration using a stop-time measurement device is required after any brake, clutch, or control system maintenance that could change the hazard time. The safety distance ‘D’ must be recalculated and verified.

Without a verified, up-to-date stop-time measurement, a light curtain provides only an illusion of safety.

Biosafety Cabinet Class II A2 or B2:Which Structural Safeguards Are Mandatory for Commercial Buildings in Quebec?

For facilities in Montreal’s burgeoning life sciences and pharmaceutical sectors, machine guarding extends beyond mechanical hazards to biological ones. Biosafety Cabinets (BSCs) are a primary engineering control, and choosing the right class is a critical structural and legal decision governed by the Quebec Construction Code. The most common types, Class II A2 and B2, look similar but have fundamentally different implications for your building’s infrastructure.

A Class II A2 cabinet is the most common, designed for work with low- to moderate-risk biological agents in the absence of volatile toxic chemicals. It works by recirculating approximately 70% of the air within the cabinet through a HEPA filter, while exhausting the other 30% back into the room. This design has a minimal impact on a building’s HVAC system. In contrast, a Class II B2 cabinet is a total-exhaust system. It exhausts 100% of the air it takes in to the outside, after HEPA filtration. This makes it suitable for work with hazardous biological agents and small amounts of volatile cytotoxic drugs or radionuclides.

The choice is dictated by the materials being handled. For many university research labs, like those at McGill or UdeM, an A2 cabinet is sufficient. However, for pharmaceutical R&D facilities handling volatile compounds, a B2 is often legally required.

For pharmaceutical R&D facilities in Laval’s Cité de la Biotech handling volatile cytotoxic drugs, a Class B2 cabinet is legally non-negotiable under Quebec Construction Code requirements

– Quebec Construction Code Advisory Committee, Commercial Building Safety Requirements 2024

From a building management perspective, specifying a B2 cabinet is a major capital decision. It requires dedicated, hard-ducted exhaust to the outside, a powerful, potentially explosion-proof fan, and a significantly larger makeup air system to replace the 100% of air being exhausted. This can involve major structural and HVAC redesigns.

Failure to select the correct cabinet class is not just a safety risk; it’s a building code violation that can halt operations entirely.

Isolation Pads vs Enclosures: Which Is More Cost-Effective for Noisy Compressors?

Controlling industrial noise is a key part of machine safeguarding, with direct impacts on worker health and CNESST compliance. For a noisy piece of equipment like an industrial air compressor, a plant manager typically faces two engineering control options: mounting the machine on vibration isolation pads or building a full acoustic enclosure around it. The most cost-effective solution depends on the noise source and the specific environment of your Montreal facility.

Isolation pads are designed to tackle structure-borne noise. They work by decoupling the machine from the floor, preventing vibrations from traveling through the building’s structure and radiating as noise elsewhere. They are highly effective and low-cost if the primary noise problem is this low-frequency, vibrational hum. However, they do little to reduce airborne noise—the high-frequency sound that travels directly from the machine to the operator’s ear. If the compressor’s noise level at the source exceeds the CNESST-mandated 85 dBA maximum exposure limit for an 8-hour shift, pads alone will be insufficient.

Acoustic enclosures are the solution for high levels of airborne noise. These are barriers built from sound-absorbing and sound-blocking materials that contain the noise at the source. While highly effective, they are a more significant capital investment. Furthermore, their operational cost must be carefully considered, especially in the context of Quebec’s climate.

The most cost-effective solution is the one that correctly targets the specific type of noise (structure-borne vs. airborne) while accounting for the long-term operational costs imposed by the local climate.

Reducing Industrial Noise Levels Below CNESST Limits Without Stifling Production

The final pillar in a holistic safety system is managing industrial noise. High noise levels are not just a nuisance; they are a recognized hazard that causes irreversible hearing loss and contributes to workplace stress and fatigue. In Quebec, the CNESST strictly enforces an 8-hour exposure limit of 85 dBA. Your goal as a plant manager is to meet this limit using a systematic approach that doesn’t cripple production efficiency. The key is to follow the Hierarchy of Noise Controls, a framework endorsed by CNESST and safety professionals worldwide.

This hierarchy prioritizes the most effective and reliable solutions first. The top, and most desirable, level is Elimination/Substitution. This means removing the noise source entirely or replacing a loud machine with a quieter model, often a consideration when sourcing from local Quebec suppliers during equipment replacement cycles. When this isn’t possible, the next level is Engineering Controls—modifying the environment or the machine itself. This includes the isolation pads and enclosures discussed previously, as well as installing barriers or silencers.

Only after exhausting engineering options should you move to Administrative Controls. These are changes to work practices, such as implementing job rotation schedules to limit an individual’s exposure time, ensuring they comply with Quebec labour laws. The final and least preferred option is Personal Protective Equipment (PPE). Providing hearing protection like earplugs or earmuffs is a necessary last resort, but it should never be the first or only solution. PPE relies on consistent and correct use by the worker, making it the least reliable control method.

By following this hierarchy, you create a more robust and sustainable noise reduction program:

• Elimination/Substitution: Source quieter machinery from Quebec suppliers when replacing equipment.
• Engineering controls: Install enclosures, barriers, or isolation systems to contain noise at the source.
• Administrative controls: Implement job rotation schedules compliant with Quebec labour laws to limit individual exposure duration.
• PPE as last resort: Provide certified hearing protection only when the above measures are insufficient to reduce noise to safe levels.

A quiet factory is a safe and productive factory. By implementing the Hierarchy of Controls, you protect your workers’ hearing and well-being, ensuring long-term compliance and operational excellence. The next logical step is to commission a formal, third-party risk assessment to identify and prioritize hazards across your entire facility.
